FOR IMMEDIATE RELEASE
ELECTRO-MECH’s SW45023 EXIT DOOR LAMP SWITCH
APPROVED BY AIRBUS

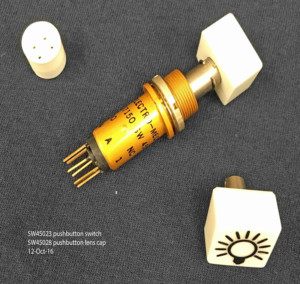

SOUTH EL MONTE, Calif., October 18, 2016 — Electro-Mech’s new SW45023 exit lamp door switch has been designed, tested, and approved by Airbus Industries for installation in Airbus A350 aircraft.
The DPST illuminated switch includes several design requirements as specified in the Airbus drawing specification:
– custom PC pins 0.025 square for mating into next higher assembly connector
– push-on/remain-in/push off switch function
– 2.0A resistive load at 28VDC input
– Custom PC pin housing for protection during transit
– Case dimple for alignment with next higher assembly connector
Electro-Mech lens cap SW45028 has also been approved as the accompanying lens cap. Lens cap is designed to accommodate one T-1-¾ (5mm) midget flange base lamp or LED. Light bulb logo can be added as an optional configuration.
1826 Floradale Avenue
South El Monte, CA 91733-3689 USA
(626) 442-7180 * (888) 442-7180 * Fax: (626) 350-8070
Electro-Mech products are identical to products previously supplied by European Switches Manufacturing (Elincourt, France) (ESM) (f.k.a. Pendar France). ESM discontinued its manufacturing operations in 2015.
Lightweight, the compact unit weighs less than 15 grams and measures less than ¾” diameter. The SW45023 switch requires approx. 1.40” of space behind the panel and includes PC pins for plug in mating to next higher assembly.
The SW45023 switch is rated at 2.0A resistive at 28 VDC. Other features provided by the SW45023 include Push-On/Remain-In/Push-Off switch mechanism, operating pressure of 32 oz. (+ 8 oz.), plunger travel of approximately 0.19”, and a rated switch life of 200,000 minimum cycles.
Electro-Mech Components, Inc. is located 15 miles east of downtown
Los Angeles in South El Monte, California and specializes in the design and manufacture of illuminated pushbutton switches, indicator lights, potentiometer-switch assemblies, and multiswitch interlocking assemblies. The company operates its switch manufacturing and shelter manufacturing plants in Tijuana, B.C. Mexico.
For complete specifications and drawings on the SW45023 switch, SW45028 lens cap, or the company’s entire line of products contact Electro-Mech Components, Inc., 1826 Floradale Ave., South El Monte, CA 91733-3689, Phone (888) 442-7180, Fax (626) 350-8070,
Email: Terry@www.electromechcomp.com, Web: www.electromechcomp.com.
For additional photo formats, including electronic files of the attached slide image, please
contact Terry Trumbull at (626)442-7180 x12 or e-mail: firstname.lastname@example.org.
