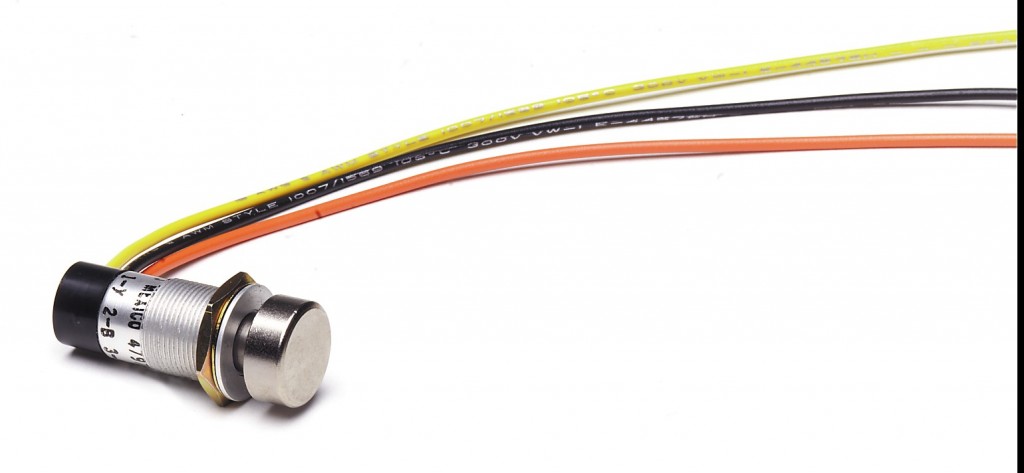

SW43518 Panic Switch


  • Metal case switch
  • Circuitry SPST – 2PDT
  • Short housing for front panel mounting
  • Momentary switching action only
  • W modification IAW Mil-PRF-22885 sealing requirements

Electro-Mech offers a miniature non-lighted pushbutton switch to be used in the floorboards of automobiles or taxis.

This model was custom designed for Teletrac (formerly AirTouch Teletrac) located in Leawood, Kansas. This rugged, sealed, non-illuminated pushbutton switch is meant to be foot activated in the floor panel as a cellular warning system in case of attempted robbery or carjacking. It is resistant to water, sand, salt, mud, snow and boot heels.

Ratings: 30 VDC or 115 VAC, 2 amps resistive, 0.5 amp inductive
Weight: 1 oz.
Operating Pressure: 3 lbs.+ 1 lb.
Plunger Travel: 0.100 nominal (2.54mm) (approx.)
Actuations: 100,000
Contacts: Silver plated (gold plating optional)
Terminals: Standard EMC solder lug. Accepts two 20 AWG wires. PC pin terminals also available.
Lens: Special metal button P/N SW43518-100 Rev-A
Terminal Leads: 18 AWG, 18″ long, Stripped and tinned at ends 1/2″
